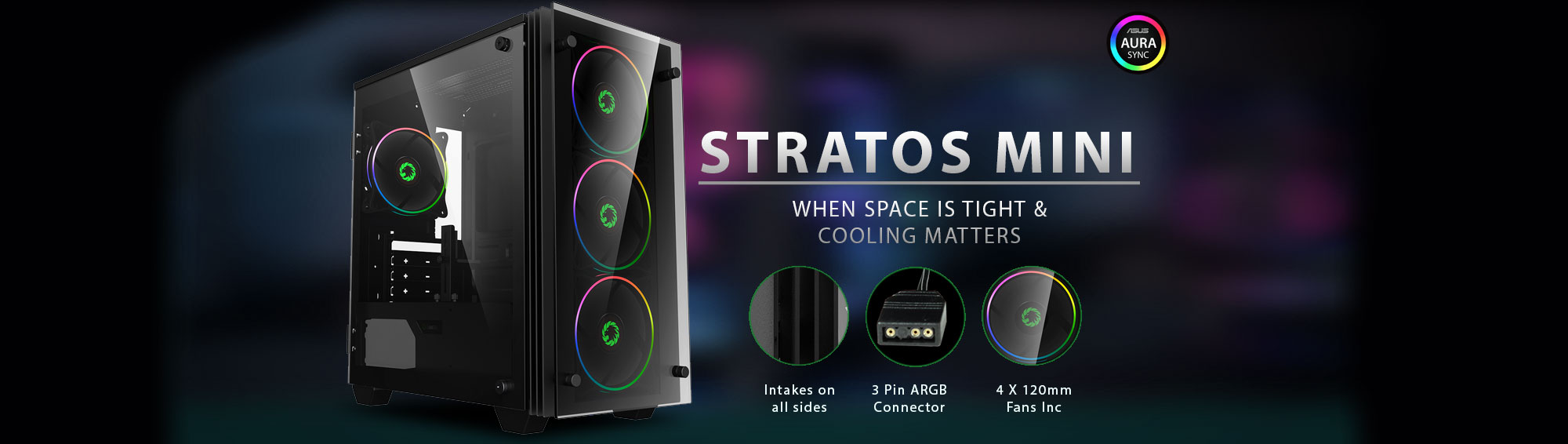

Stratos Mini M-ATX Case
he GameMax Mini Stratos Micro-ATX gaming case is compact case that packs a punch. A large gap on all four sides of the front panel allow the three pre-installed front fans to circulate plenty of air throughout your system and the staggered glass panel gives a high end finish without breaking the bank.
The Stratos includes four fans, three at the front and one at the back, the Mini Stratos delivers the coolest air to your hottest components first and with a rear mounted exhaust fans pushes hot air out, creating a perfect cycle of airflow and providing better thermals and reliability.
Stratos A-RGB Tempered Glass Gaming Case
The GameMax Mini Stratos Micro-ATX gaming case is compact case that packs a punch. A large gap on all four sides of the front panel allow the three pre-installed front fans to circulate plenty of air throughout your system and the staggered glass panel gives a high end finish without breaking the bank.
The Stratos includes four fans, three at the front and one at the back, the Mini Stratos delivers the coolest air to your hottest components first and with a rear mounted exhaust fans pushes hot air out, creating a perfect cycle of airflow and providing better thermals and reliability.
The Mini Stratos comes with a pre-installed ARGB hub allowing for stunning lighting effects and easy connection to your system. You can connect up to five fans and two LED strips to the hub and sync all to your motherboard using the 3 Pin AURA connection, please note the hub to motherboard AURA connection is not included and will needed to be purchased separately. Please note the included hub supports a total of 5 fans.
The left side panel is made of 4mm tempered glass allowing the you to show off your internal components and lighting.
Situated on top of the Stratos Mini includes two USB3.0 ports, LED & brightness buttons, HD Audio and Mic Jacks.
In line with the GameMax ethos this case offers style, performance and the ultimate experience.
Key Features
Airflow Specific Design – The Mini Stratos is designed with airflow in mind, mount up to six fans in total and with four included. The front panel made using a triple metal – fin design enables direct airflow to cool even the most hardcore of systems.
Motherboard Sync – You can now take your colour control to new levels with the included ARGB motherboard connection on the PWM hub, simply connect the 3pin AURA from your motherboard and you can use the mobo software to sync your fans and strips the way you like.
ARGB Hub – Included in the Mini Stratos is an ARGB PWM hub, connect up to five fans and two LED strips, have access to 18 colour modes manually or have even more using the motherboard software. Once all connected enjoy PWM auto speed controlled via MB’s PWM signal, also 2 RGB buttons (Mode & Brightness), it much better for user to easy adjust light mode and adjust between 5 different brightness modes (0-20-40-80-100%).
Water-Cooling Support – The front supports 120mm & 240mm radiator, the top supports a 120mm and 240mm radiator and the rear of the case supports a 120mm radiator.
Tempered Glass – The left side comes with a hinged tempered glass panel to allow the user to show off their build and a hinged door makes it quick and easy to make any changes so you can have the perfect set up.
Easy Maintenance – Located on the top of the Mini Stratos is a dust filter, helps to prevent dust from getting into your build and helps improve the performance of your chassis.
The GameMax Stratos Mini is compatible with the following fans:
– GameMax Mirage Dual-Ring Rainbow RGB 120mm
– GameMax Mirage White Fins Dual-Ring Rainbow RGB 120mm
– GameMax Razor Rainbow ARGB 120mm
– GameMax Velocity Rainbow ARGB 120mm
– GaneMax ARGB 3 in 1 Kit
The GameMax Stratos Mini is compatible with the following hubs:
– Spectrum ARGB Hub
– GameMax ARGB Fan Hub
| Form Factor: | Micro ATX |
| Motherboard Support: | Micro ATX, Mini ITX |
| PSU Support: | Standard ATX |
| PSU Location: | Bottom |
| Gaming Case: | Yes |
| Water Cooling: | Water Cooling Ready! Supported Radiator Size: 240mm Supported Radiator Positions: Front, Top |
| Body Material: | SPCC 0.6mm |
| Front Bezel Material: | ABS & Tempered Glass |
| Side Panel: | Tempered Glass |
| Internal Cable Management Depth: | 19mm |
| External Bays: | |
| Internal Bays: | 2 x 3.5” Internal 2 x 2.5” Internal |
| Drive Bay Notes: | |
| Expansion Slots: | 4 x Full Size |
| Cooling Front: | Space For 3 x 120mm Fans (3 x 120mm Dual-Ring ARGB Fans Included) |
| Cooling Top: | Space For 2 x 120mm Fans |
| Cooling Rear: | Space For 1 x 120mm Fan (1 x 120mm Dual-Ring ARGB Fan Included) |
| Cooling Side: | None |
| Cooling Bottom: | None |
| Fan Controllers: | 1 Fan Controllers, controlling up to 5 fans in total |
| IO Ports: | 2 x USB 3.0 1 x HD Audio (Also Supports AC’97) |
| GPU Max Length: | 340mm |
| CPU Cooler Maximum Height: | 155mm |
| Front Bezel Colour: | Black |
| Body Colour: | Black |
| System Cabinet Features: | |
| PSU Included: | No |
General Specifications
| Manufacturer Part Number: | GMX-STRATOSMINI |
| EAN Number: | 6931858771153 |
| Has Mains Plug: | No |
| Colour: | Black |
| What’s In The Box: | Case Manual Screws |
| Unit (Product) Dimensions (mm): | 194mm x 415mm x 403mm (W x H x D) |
| Packaging Dimensions (mm): | 287mm x 487mm x 493mm (W x H x D) |
| Net Weight (KGs): | 3.6 KGs |
| Gross Weight (KGs): | 4.4 KGs |
