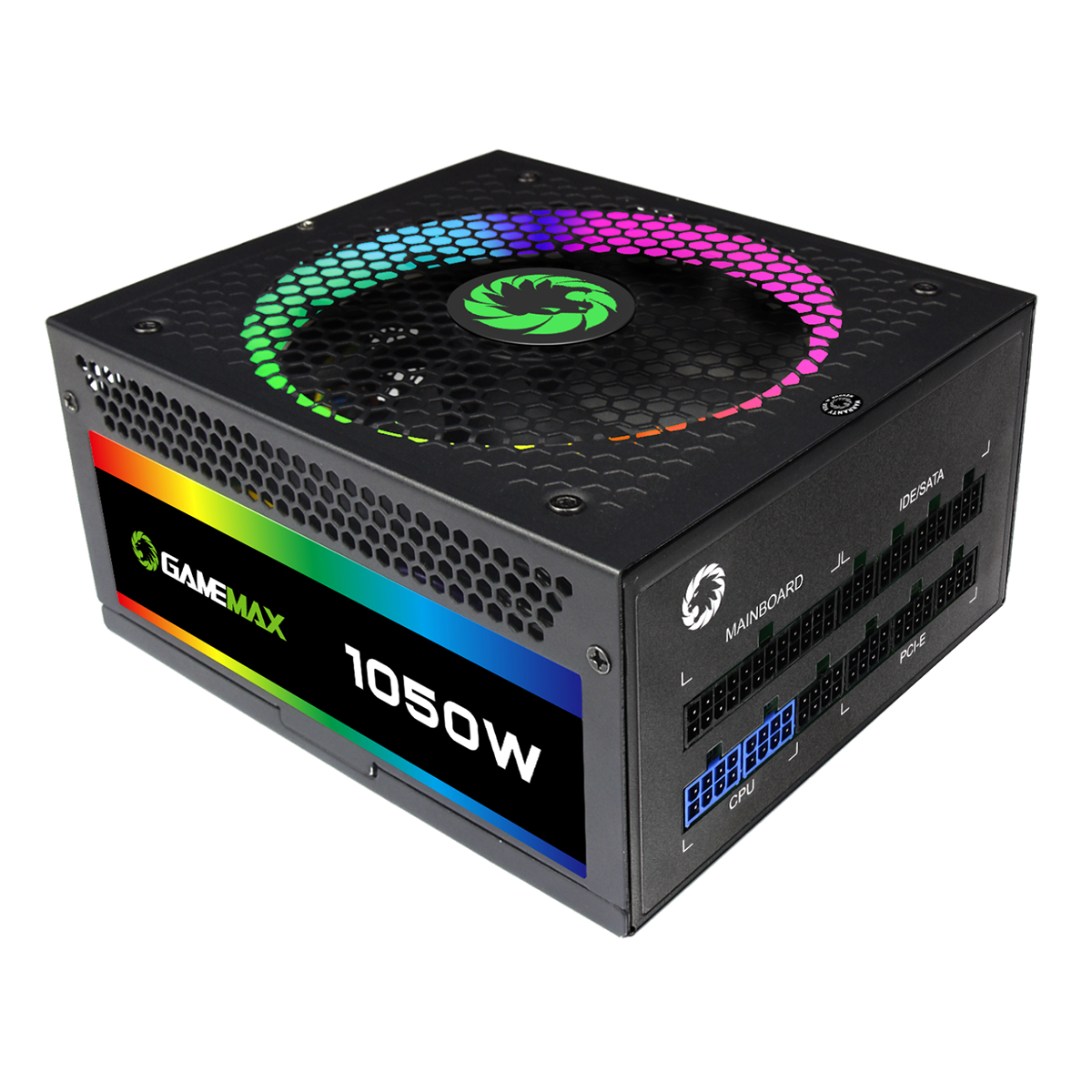

1050W Modular RGB Gold 80 Plus 14cm RGB Fan & Illuminated Logo

Game Max RGB series power supply offers Value and Performance. They are the most suitable for cost/performance ratio and is the best choice for a system builder. The 12V CPU power and modern PCIe 6 + 2 Pin connectors are ready for high-end gaming systems. There is full electrical protection and official safety and also the quality promise by Game Max.

1050W Modular RGB – Gold

Game Max RGB series power supply offers Value and Performance. They are the most suitable for cost/performance ratio and is the best choice for a system builder. The 12V CPU power and modern PCIe 6 + 2 Pin connectors are ready for high-end gaming systems. There is full electrical protection and official safety and also the quality promise by Game Max.

RGB Modes operation instructions:

1. With the memory function, turn on the power supply again the initial state is the same as the state of when the PSU was turned off.

2. Press the RGB controller switch successively, the lights change to be Red, Blue, Green, White, Yellow and Purple, breathing lights and the colours can mix mode in turn.

3. Breathing light mode: Make the lights bright gradually in two seconds, make the lights dim gradually in two seconds, play cycle from white colour to purple colour.

4. Colour mix mode: the lights change from white to purple colour in turn and keep 0.5 Seconds at the peak of each colour and it takes 4 Seconds between the two colours.

5. In any mode, press the RGB controller switch for three seconds, the lights go out.

Key Features



  • Powerful single +12V rails offers stable DC output and supports high-end graphic cards and PC systems.
  • 80+ Gold APFC, High-Efficiency and 90+ Certified.
  • Active Power Factor rate up to 0.9.
  • RGB Ring Fan on the top, RGB Illuminated logo on the side and the lights are coming from the top and side. The Colours include: Red, Blue, Green, White, Yellow and Purple.
  • Honeycomb ventilation design for optimal heat dissipation.
  • Full modular output connector.

PSU Specifications

AC INPUT: 100-240 VAC 6A/12A 50-60Hz
DC
Output
Max
+3.3V +5V +12V1 -12V +5VSB
25A 25A 82A 0.5A 2.5A
1050W

Detailed Specifications

Dimensions: 150mm x 85mm x 165mm (W x H x D)
Input Voltage: 100-240 VAC
Input Current: 6A/12A
Input Frequency Range: 50-60Hz
PFC: Active PFC (>.99)
Power Good Signal: 100-500 ms
Hold Up Time: >17ms
Efficiency: >88%
MTBF: 100,000 Hours
Protection: OVP / UVP/ OTP / OCP/ OLP/ OPP/ SCP
Power: 1050W
Operation Temperature: 0-40°C (Nominal Input Voltage)
Safety: CE / FCC / CB
Cooling: 140mm Ultra Silent Fan
Noise: < 17 dBA
80 Plus Certified: Yes – 80 Plus Gold

General Specifications

Manufacturer Part Number: RGB-1050
EAN Number: 6931858766036
Has Mains Plug: No
Colour: Black
What’s In The Box: Power Supply
Screws
Unit (Product) Dimensions (mm): 150mm x 85mm x 165mm (W x H x D)
Packaging Dimensions (mm): 345mm x 122mm x 245mm (W x H x D)
Net Weight (KGs): 1.87 KGs
Gross Weight (KGs): 2.25 KGs
