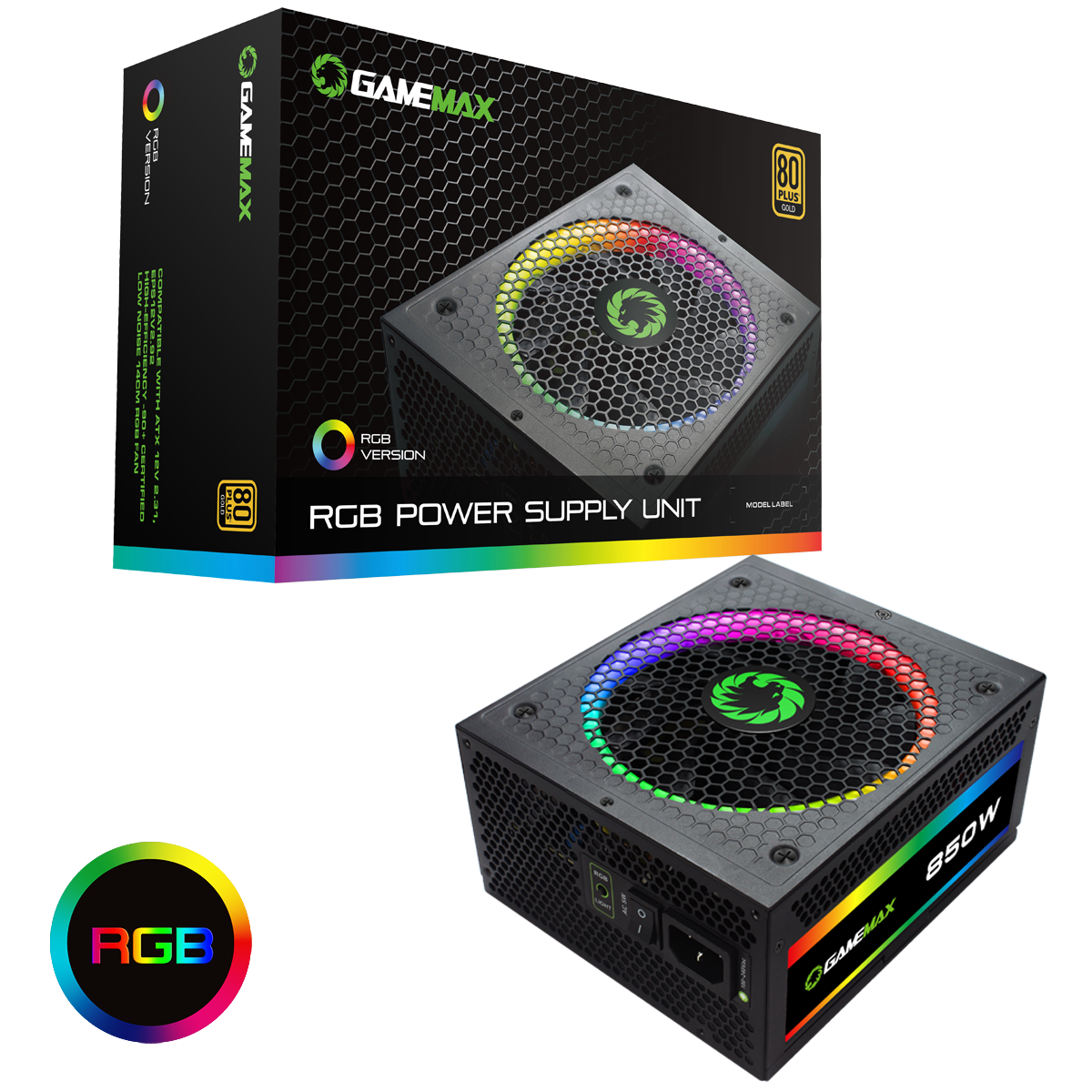

850W Modular RGB Gold 80 Plus 14cm RGB Fan
GameMax RGB series power supply offers Value and Performance. They are the most suitable for cost/performance ratio and is the best choice for a system builder. The 12V CPU power and modern PCIe 6 + 2 Pin connectors are ready for high-end gaming systems. There is full electrical protection and official safety and also the quality promise by GameMax.
850W Modular RGB – Gold 80 Plus
GameMax RGB series power supply offers Value and Performance. They are the most suitable for cost/performance ratio and is the best choice for a system builder. The 12V CPU power and modern PCIe 6 + 2 Pin connectors are ready for high-end gaming systems. There is full electrical protection and official safety and also the quality promise by Game Max.
RGB Modes operation instructions:
1. With the memory function, turn on the power supply again the initial state is the same as the state of when the PSU was turned off.
2. Many different colour modes are available by pressing the RGB button on the front of the PSU.
3. The fan has a variety of ARGB and RGB LED lighting effects.
4. In any mode, press the RGB button for three seconds, the lights go out.
Key Features
- Powerful single +12V rails offers stable DC output and supports high-end graphic cards and PC systems.
- 80+ Gold APFC, High-Efficiency and 90+ Certified.
- Active Power Factor rate up to 0.9.
- The GameMax RGB PSU includes a 14cm RGB 256 colour fan. You can switch between single colour and rainbow colour modes. Single colours include red, green, blue, yellow, white, pink and purple.
- Honeycomb ventilation design for optimal heat dissipation.
- Full modular output connector.
- Warranty – The GameMax PSU range comes with 12 months Warranty.

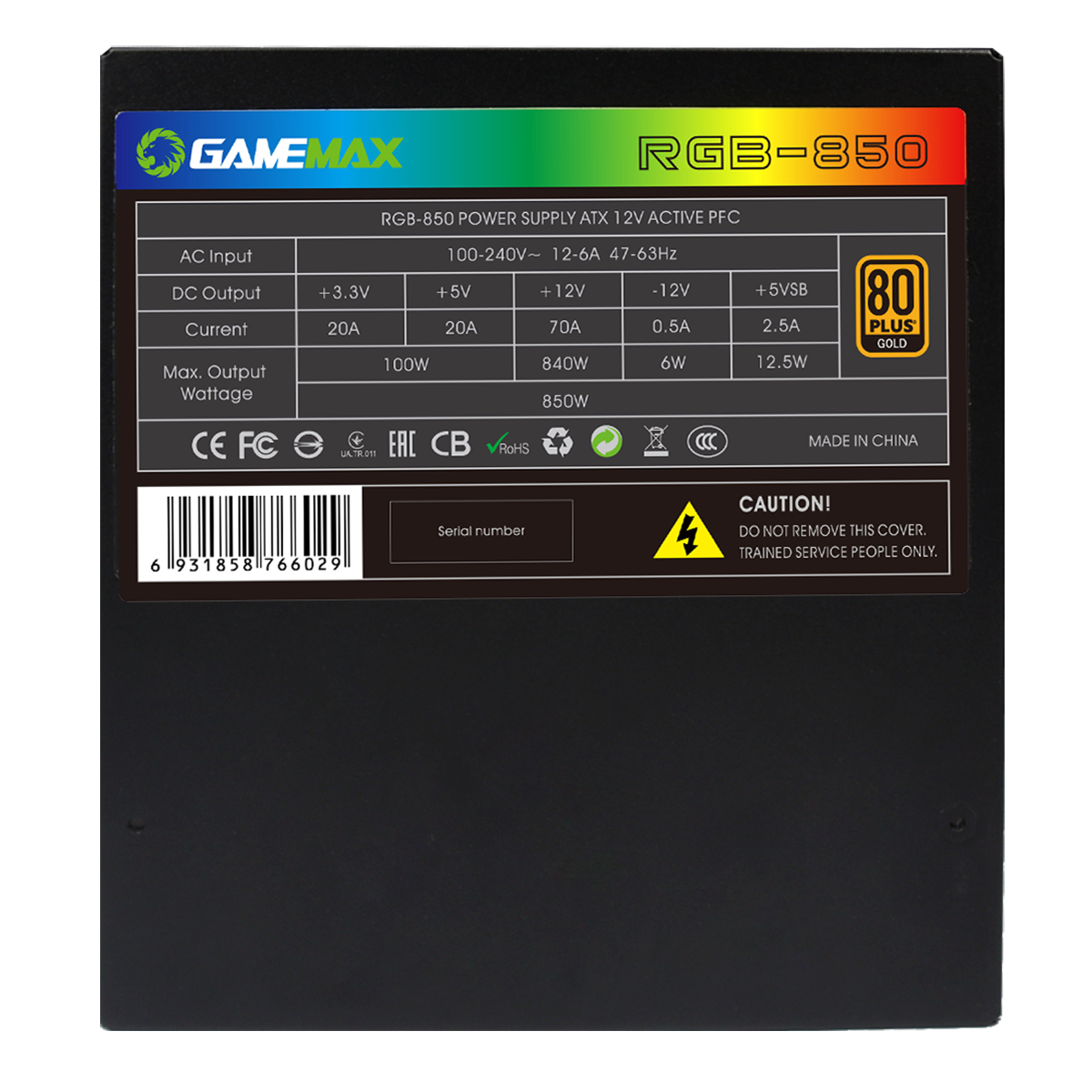

PSU Specifications
| AC INPUT: 100-240 VAC 6A/12A 50-60Hz | |||||
| DC Output Max |
+3.3V | +5V | +12V1 | -12V | +5VSB |
| 20A | 20A | 70A | 0.5A | 2.5A | |
| 850W | |||||
Detailed Specifications
| Dimensions: | 150mm x 85mm x 165mm (W x H x D) |
| Input Voltage: | 100-240 VAC |
| Input Current: | 6A/12A |
| Input Frequency Range: | 50-60Hz |
| PFC: | Active PFC (>.99) |
| Power Good Signal: | 100-500 ms |
| Hold Up Time: | >17ms |
| Efficiency: | >88% |
| MTBF: | 100,000 Hours |
| Protection: | OVP / UVP/ OTP / OCP/ OLP/ OPP/ SCP |
| Power: | 850W |
| Operation Temperature: | 0-40°C (Nominal Input Voltage) |
| Safety: | CE / FCC / CB |
| Cooling: | 140mm RGB Ultra Silent Fan |
| Noise: | < 17 dBA |
| 80 Plus Certified: | Yes – 80 Plus Gold |
General Specifications
| Manufacturer Part Number: | RGB-850 |
| EAN Number: | 6931858766029 |
| Has Mains Plug: | No |
| Colour: | Black |

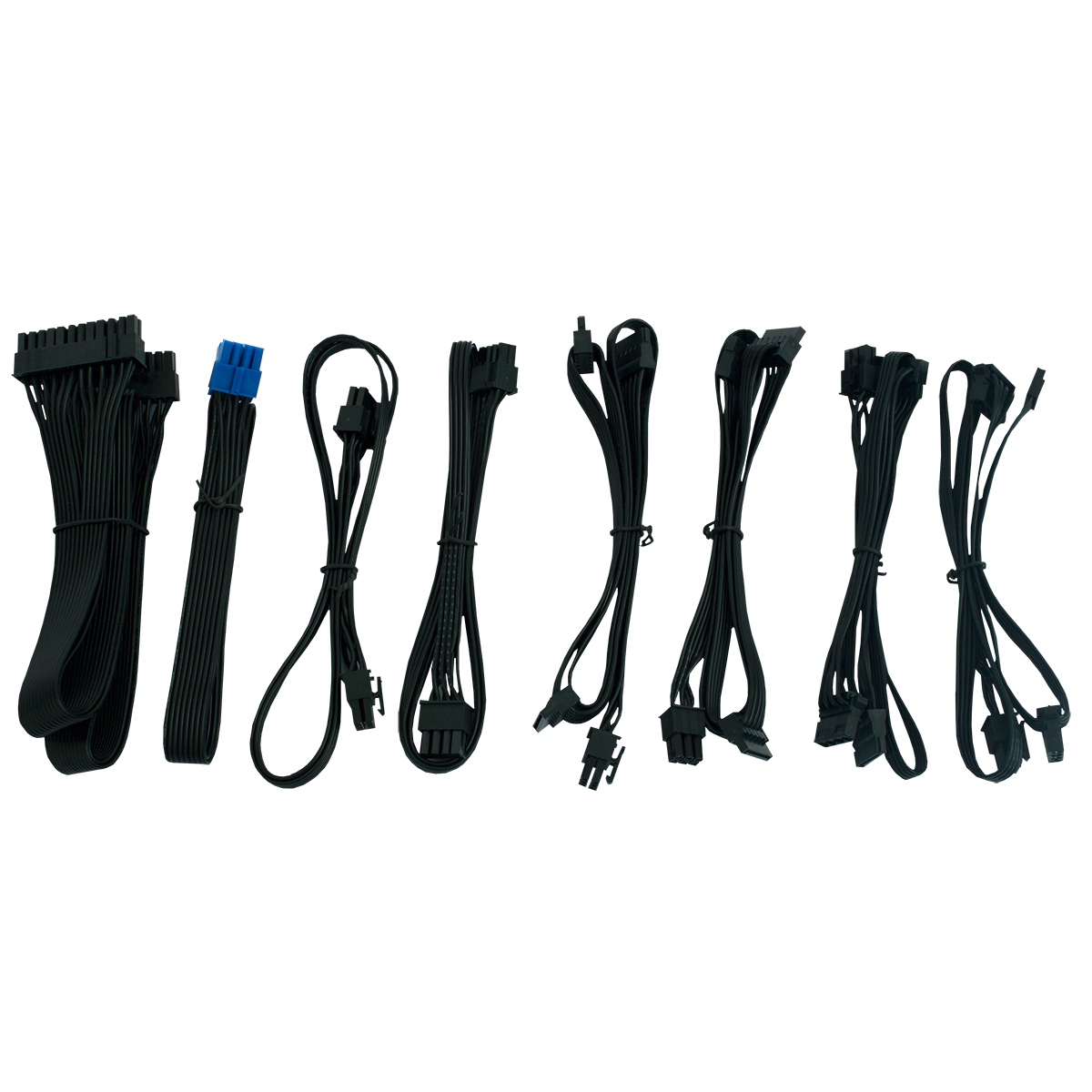

| What’s In The Box: | Power Supply Modular Cables Manual Cable Ties Screws |
| Unit (Product) Dimensions (mm): | 150mm x 85mm x 165mm (W x H x D) |
| Packaging Dimensions (mm): | 345mm x 122mm x 245mm (W x H x D) |
| Net Weight (KGs): | 1.57 KGs |
| Gross Weight (KGs): | 1.95 KGs |
DARE TO WIN
The Game Max focus is gaming products to enable everyone to have a great experience without breaking the bank.
