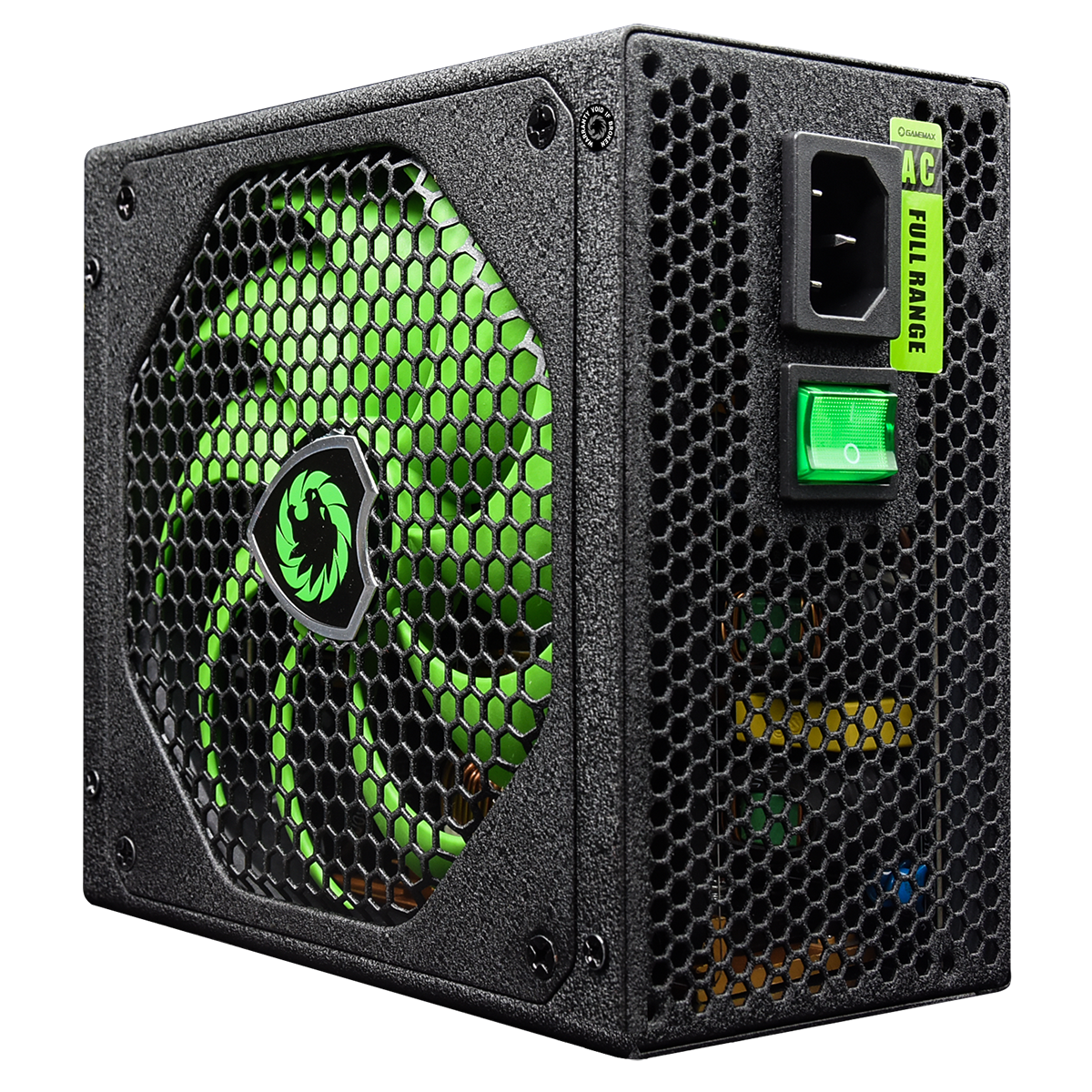

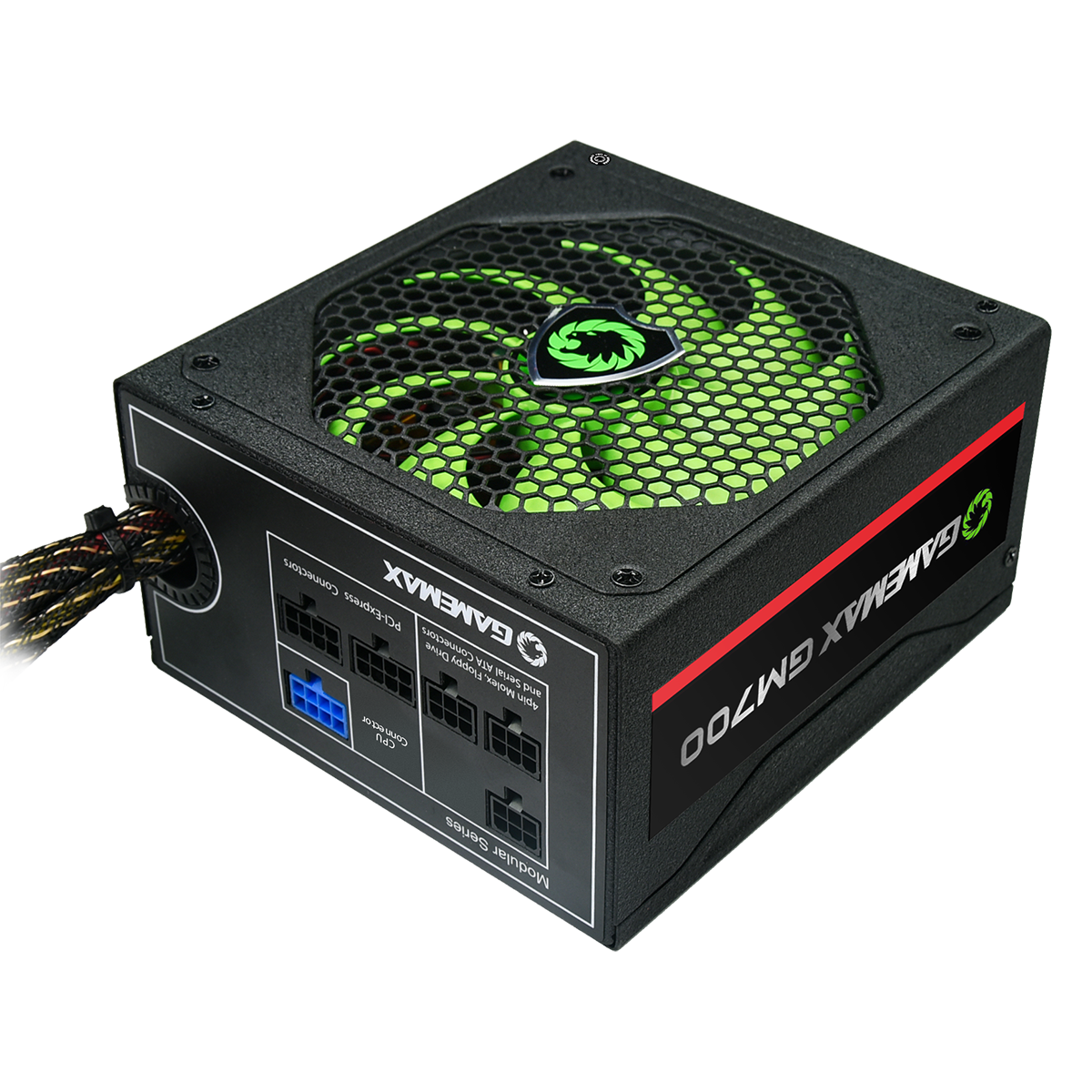

GM700 800w 80 Plus Bronze Modular PSU

GameMax Semi-Modular Series is a semi-Modular PSU with a compact and quiet engineering, with semi-modular cables for easy maintenance, allowing you to only connect cables that your system needs. Fewer cables allows it to be tidy and better airflow inside your case. High 80 Plus efficiency, reduced ripple and electrical instabilities and better efficiency and protection gives the user durability and total confidence in your next system build. 100% 6th Generation Skylake Ready!

GM800 800w 80 Plus Bronze Modular PSU

GameMax Semi-Modular Series is a semi-Modular PSU with a compact and quiet engineering, with semi-modular cables for easy maintenance, allowing you to only connect cables that your system needs. Fewer cables allows it to be tidy and better airflow inside your case. High 80 Plus efficiency, reduced ripple and electrical instabilities and better efficiency and protection gives the user durability and total confidence in your next system build. 100% 6th Generation Skylake Ready!

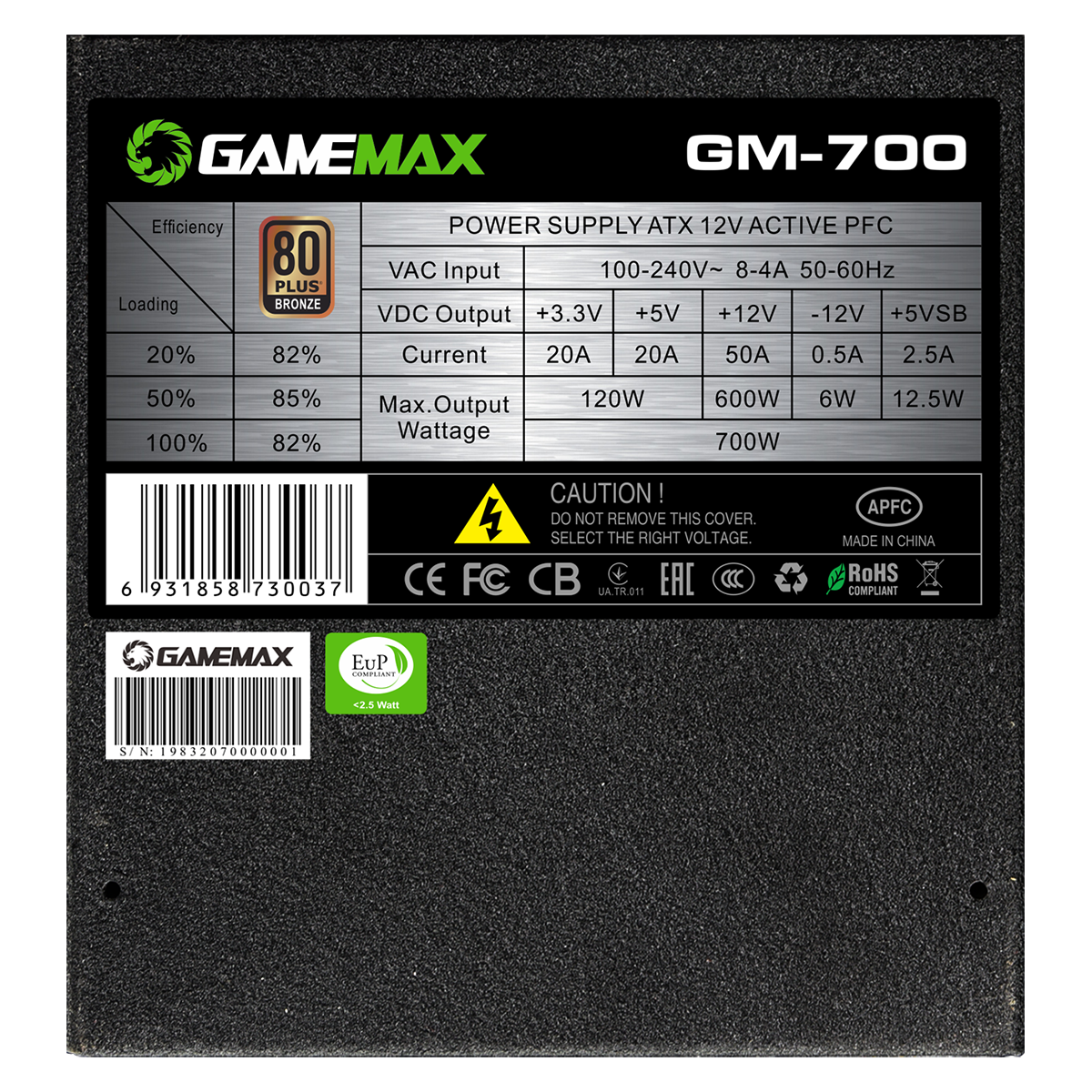

 PSU Specifications



AC INPUT: 100-240 VAC 5-10A 50-60Hz
DC
Output
Max
+3.3V +5V +12V1 +12V2 -12V +5VSB
20A 20A 25A 25A 0.5A 2.5A
700W

Key Features

  • Elegant black PSU casing with full black mesh cables
  • ATX12V Ver.2.30 compliant with ATX12V Ver.2.31
  • High efficiency PSU, up to 85% efficiency
  • Single 12V rail for high compatibility and extreme high current output
  • Longer 20 + 4 and 4 + 4 pins up to 600mm is easy for high-end tower chassis installation
  • 14cm silent black fan with smart thermal fan speed control circuit
  • Full protection functions with OVP / UVP / OPP / SCP / SIP
  • Safety and EMC certified by CE
  • ECO friendly by RoHS and Erp 2013 directives
  • Semi-modular cables for easy maintenance







Connectors

1 x 20+4 Pin Main Connector

1 x 4+4 Pin 12V Connector

6 x SATA Connectors

 3 x 4-Pin Molex Connectors

 2 x 6+2 Pin PCI-e Connectors



Detailed Specifications

Dimensions: 160mm x 85mm x 150mm (W x H x D)
Input Voltage: 100-240 VAC
Input Current: 5-10A
Input Frequency Range: 50-60Hz
PFC: Active PFC (>.99)
Power Good Signal: 100-500 ms
Hold Up Time: >17ms
Efficiency: > 81% (85% max)
MTBF: > 100,000 Hours
Protection: OVP / UVP/ OTP / OCP/ OLP/ OPP/ SCP
Power: 700W
Operation Temperature: 0-40°C
Safety: CE / FCC / CB
Cooling: 140mm Ultra Silent Fan
Noise: <25dBa
80 Plus Certified: Yes – 80 Plus Bronze

General Specifications

Manufacturer Part Number: GM-700
EAN Number: 6931858730037
Has Mains Plug: No
Colour: Black
What’s In The Box: Power Supply
Screws
Manual

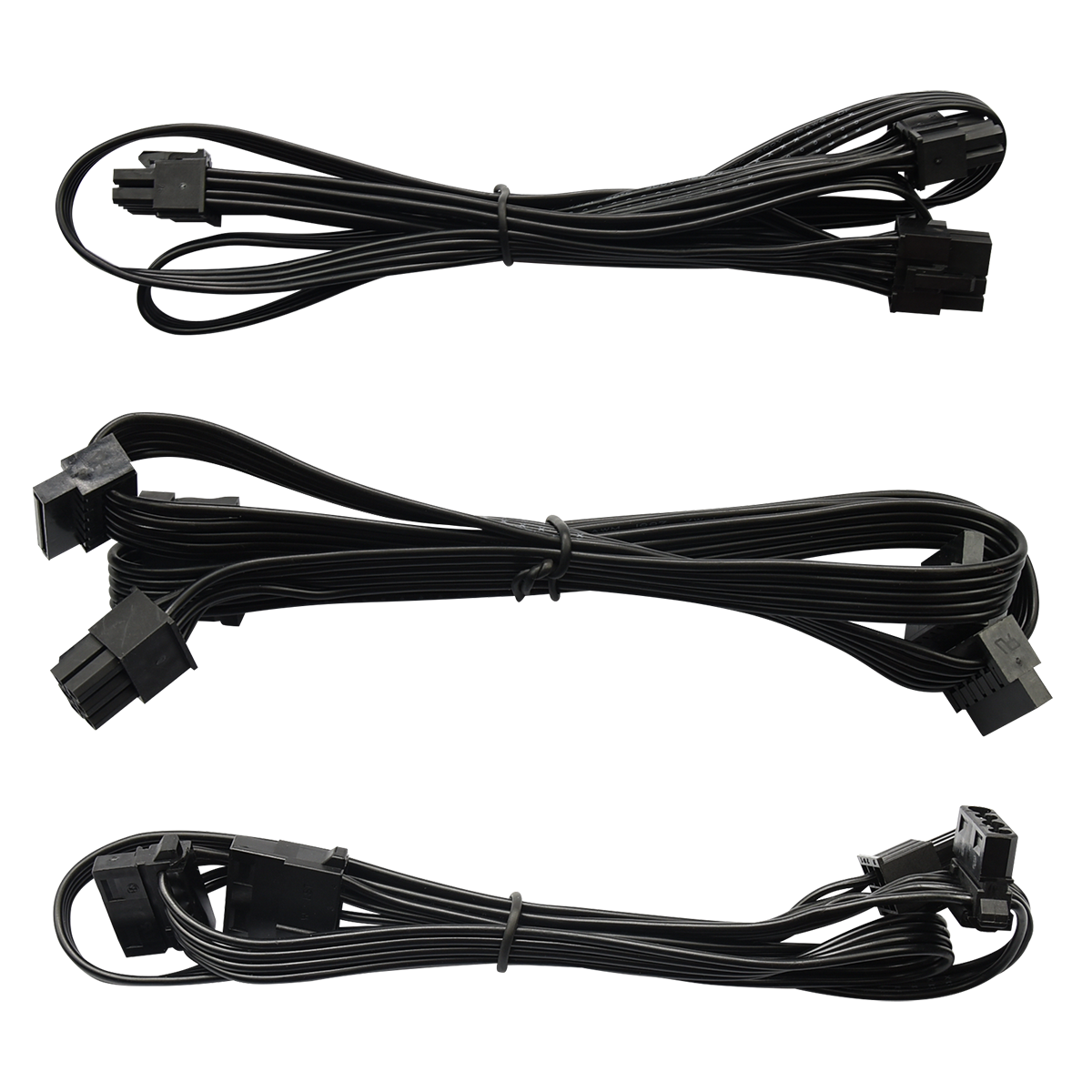

5 x Output Cables
2 x Cable Ties
Unit (Product) Dimensions (mm): 160mm x 85mm x 150mm (W x H x D)
Packaging Dimensions (mm): 335mm x 242mm x 122mm (W x H x D)
Net Weight (KGs): 2.1 KGs
Gross Weight (KGs): 2.7 KGs
