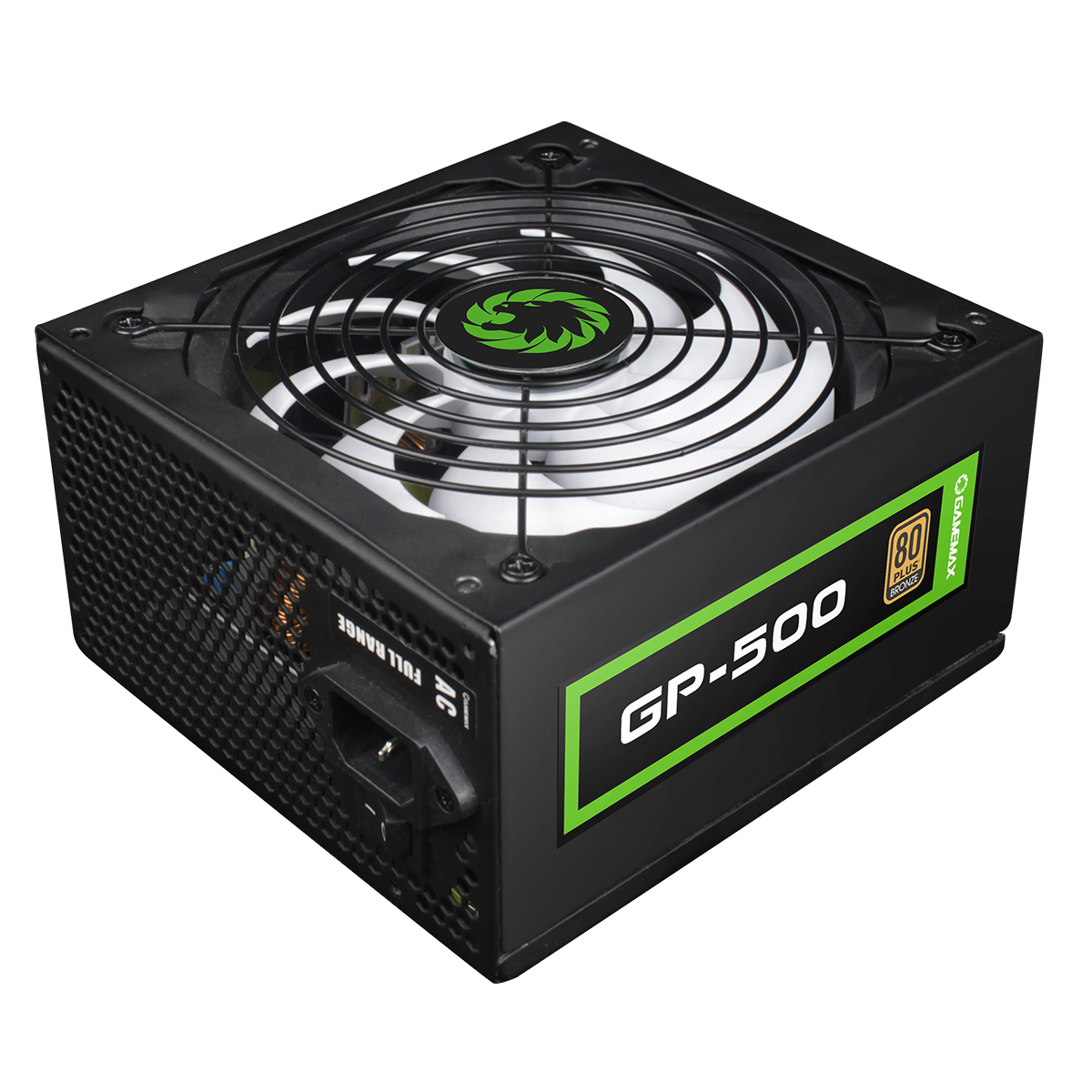

GP 500w 80 Plus Bronze Wired Power Supply

GameMax performance range power supplies are a great choice if you are building a home or office system as a mainstream model, there is a total of 4 Sata connectors for Raid storage and up to 85% efficiency for power saving and a single +12V rail for extreme CPU/GPU power consumption. Good DC quality with lower ripple and noise and fully protected functions are used to guard your components in the system. When installing there is no struggle with the longer 20 + 4 pin and 4 + 4 pin connectors measuring 550mm.

GP500 500w 80 Plus Bronze Wired Power Supply

The GameMax performance range power supplies are a great choice if you are building a home or office system as a mainstream model, there is a total of 4 Sata connectors for Raid storage and up to 85% efficiency for power saving and a single +12V rail for extreme CPU/GPU power consumption. Good DC quality with lower ripple and noise and fully protected functions are used to guard your components in the system. When installing there is no struggle with the longer 20 + 4 pin and 4 + 4 pin connectors measuring 550mm.

PSU Specifications



AC INPUT: 100-240 VAC 3.5-7A 50-60Hz
DC
Output
Max		 +3.3V +5V +12V1 -12V +5VSB
15A 15A 34A 0.5A 2.5A
500W

Key Features



  • Elegant black PSU casing with full black mesh cables
  • ATX12V Ver.2.30 compliant with ATX12V Ver.2.31
  • High efficiency PSU, up to 85% efficiency
  • Single 12V Rail for high compatibility and extreme high current output
  • Longer 20 + 4 and 4 + 4 pins up to 550mm is easy for high-end tower chassis installation
  • 14cm silent black fan with smart thermal fan speed control circuit
  • Full protection functions with OVP / UVP / OPP / SCP / SIP
  • Safety and EMC certified by CE
  • ECO friendly by RoHS and Erp 2013 directives





Connectors

1 x 20+4 Pin Main Connector

1 x 4+4 Pin 12V Connector

4 x SATA Connector

2 x 4-Pin Molex Connector

1 x 6+2 Pin PCI-e Connectors









gmxpsugp500-02
gmxpsugp500-01
gmxpsugp500-03
gmxpsugt300tfx03

Detailed Specifications

Dimensions: 158mm x 85mm x 150mm (W x H x D)
Input Voltage: 100-240 VAC
Input Current: 3.5-7A
Input Frequency Range: 50-60Hz
PFC: Active PFC (>.99)
Power Good Signal: 100-500 ms
Hold Up Time: >17ms
Efficiency: > 81% (85% max)
MTBF: > 100,000 Hours
Protection: OVP / UVP/ OTP / OCP/ OLP/ OPP/ SCP
Power: 500W
Operation Temperature: 0-40°C
Safety: CE / FCC / CB
Cooling: 140mm Ultra Silent Fan
Noise: <25dBa
80 Plus Certified: Yes – 80 Plus Bronze

.

General Specifications

Manufacturer Part Number: GP-500
EAN Number: 6931858720045
Has Mains Plug: No
Colour: Black
What’s In The Box: Power Supply
Screws
Manual
2 x Cable Ties
Unit (Product) Dimensions (mm): 150mm x 85mm x 140mm (W x H x D)
Packaging Dimensions (mm): 300mm x 180mm x 115mm (W x H x D)
Net Weight (KGs): 1.6 KGs
Gross Weight (KGs): 2 KGs
