Diamond PC Gaming Case

Dare To Win. Dare To Build.

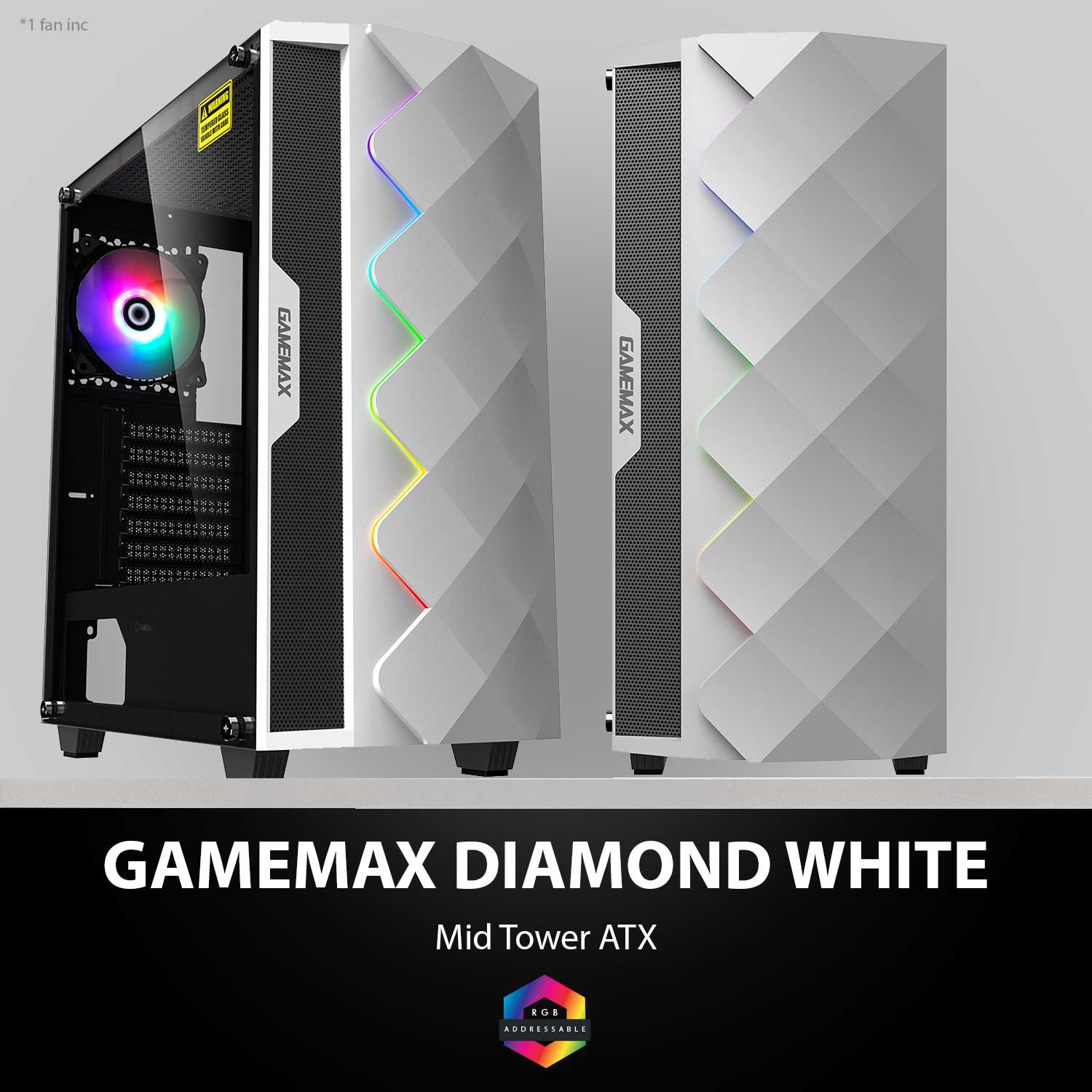

Diamond A-RGB Mid-Tower Gaming Case Tempered Glass with MB Sync

The GameMax Diamond Mid-Tower gaming case is available in black or white, designed to make building easier, this case is finished with a premium design and considered air flow vents for those gamers wanting to go to the next level without breaking the bank.The Diamond’s striking front panel offers fantastic air flow and stunning lighting effects with the built in ARGB strips and angled pattern to cast game changing shadows. Structured to improve your systems cooling capabilities, a mesh grill runs down the left side of the front panel and allows your fans to take in as much air as it needed.

Diamond A-RGB Tempered Glass Gaming Case

The GameMax Diamond Mid-Tower gaming case is available in black or white, designed to make building easier, this case is finished with a premium design and considered air flow vents for those gamers wanting to go to the next level without breaking the bank.

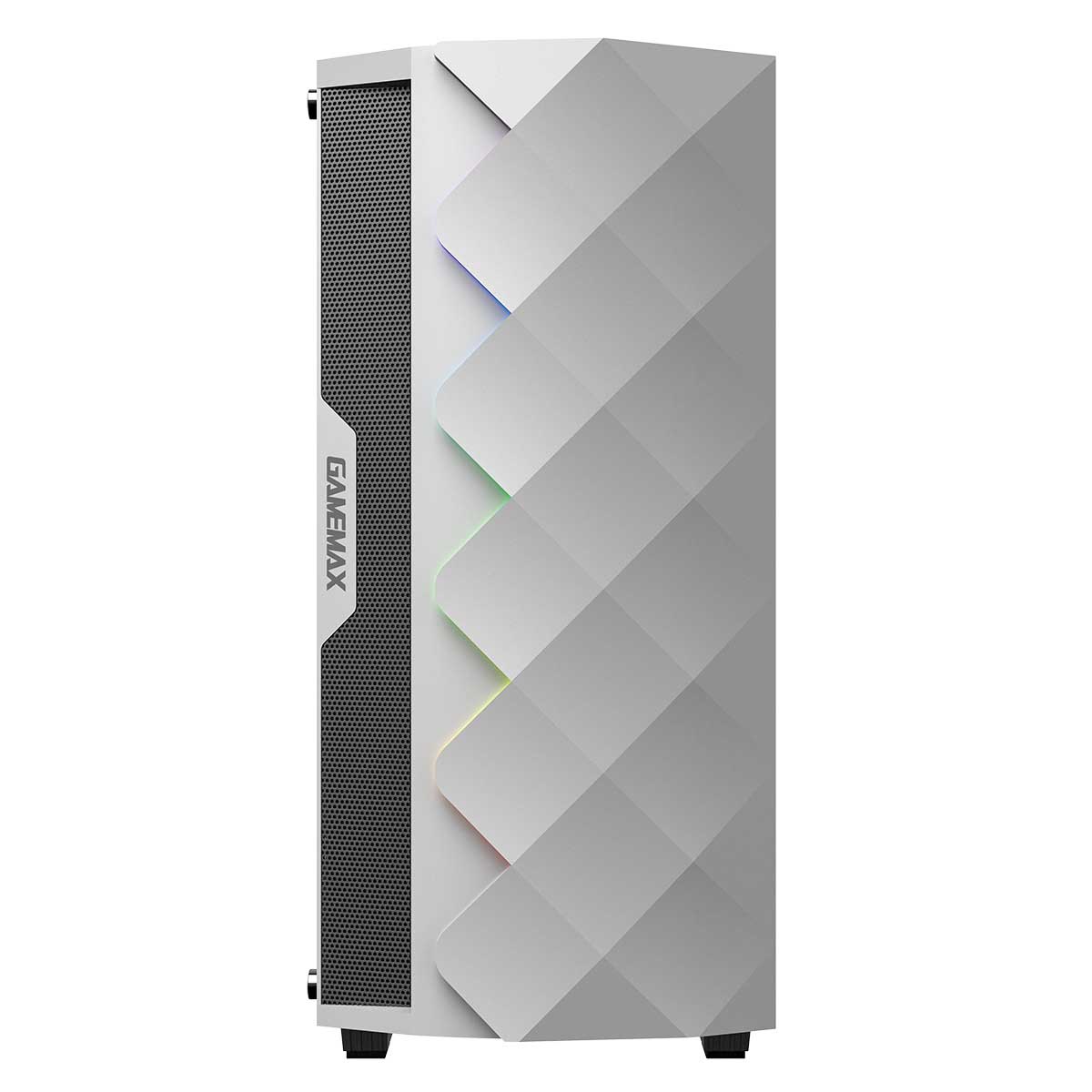

The Diamond’s striking front panel offers fantastic air flow and stunning lighting effects with the built in ARGB strips and angled pattern to cast game changing shadows. Structured to improve your systems cooling capabilities, a mesh grill runs down the left side of the front panel and allows your fans to take in as much air as it needed.

Synchronise all your fans and RGB LED strips using the built in RGB controller. Simply connect your fan and LED strip using the 4 Pin male and female connectors and with a 3 Pin connector that can be connected to a compatible motherboard enables you to access various pre-programmed colour modes and find the style that suits your build.

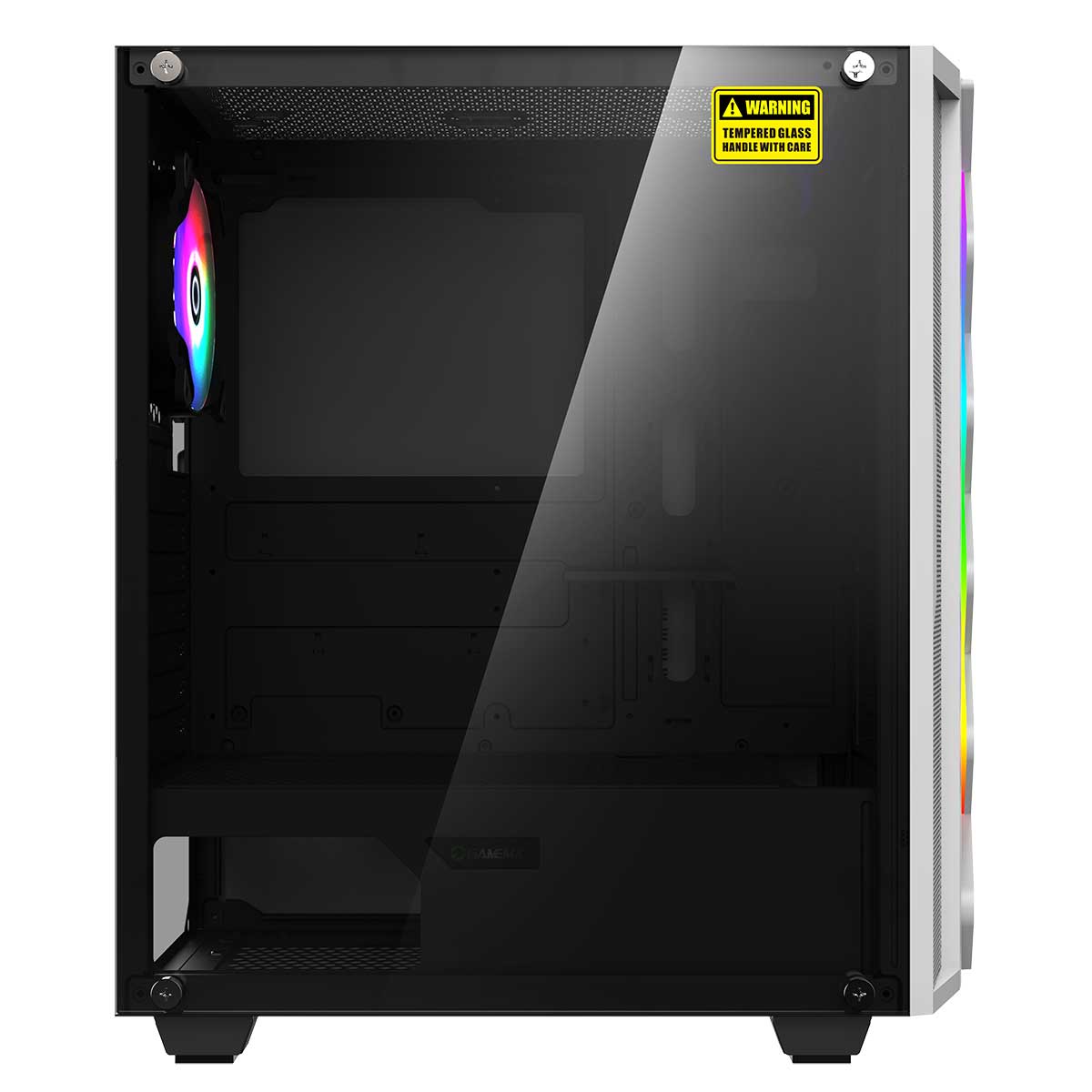

The left side panel is made of 3mm, edge to edge, tempered glass allowing you to show off your build and intelligent lighting.
The Diamond has a full-length PSU shroud, separated HDD bays and plenty of cut out holes enabling exceptional cable management, you can now create a clean build that’s easy to manage.

In line with the GameMax ethos this case offers style, performance and the ultimate experience.

Key Features

Design – The Diamond is a brilliantly designed Mid-Tower PC gaming case with room for an ATX motherboard, an all black or white chassis featuring a unique look. The front panel with a Diamond effect and the built in LED strip along with a rear ARGB fan makes the Diamond a real spectacle in any environment.

 Excellent Airflow – Excellent cooling options are on offer in the Diamond with room to mount a total of eight fans and room to mount water cooling radiators on the front and top, your case will have no problem cooling those high end components.

Easy Connection – Easily sync and control your ARGB fan and ARGB strip using the 3 Pin ARGB male and female connectors and SATA for power, once connected easily change using the LED button on top of the Diamond.

Tempered Glass – A 3mm full left side tempered glass panel to show off your build from all angles.

Easy Build Design – Get ready to build straight out of the box with an easy build design. A full length PSU shroud and plenty of cut outs, four in total makes cable management no problem and a GPU bracket included, this case really could not be simpler to build in.

GPU Bracket – The chassis includes a bracket designed for support to the graphics card, prevents sag and the bracket allows for the installation of larger graphic cards.

Compatible Fans:

GameMax Mirage Dual Ring 120mm

GameMax Mirage White Fins Dual Ring 120mm

GameMax Velocity 120mm

Gamemax ARGB 3 in 1 kit

Compatible Hubs:

Spectrum ARGB Hub – GameMax ARGB Hub











Specifications

Chassis Dimensions (Excluding Fascia / Panels): (W) 207 x (H) 465 x (D) 370mm
PSU max. Length (mm): 210mm
Additional Fan Support:
PSU Shroud: Space For 2 x 120mm Fans
Fan Information:
Rear Fan Powered Via: 3 Pin Fan Connector
Rear Fan LEDs Powered Via: 3 Pin ARGB
Packaging Type: EPE Foam
Packaging Thickness: 26.30mm

Case Specifications

Form Factor: Midi Tower
Motherboard Support: ATX, Micro ATX, Mini ITX
PSU Support: Standard ATX
PSU Location: Bottom
Gaming Case: Yes
Water Cooling: Water Cooling Ready!
Supported Radiator Size: 240mm
Supported Radiator Positions: Front, Top
Body Material: 0.5mm SPCC
Front Bezel Material: ABS
Side Panel: Tempered Glass
Internal Cable Management Depth: 23mm
External Bays:
Internal Bays: 3 x 3.5” Internal
2 x 2.5” Internal
Drive Bay Notes: 1 x 2.5″ & 3.5″ Shared
Expansion Slots: 7 x Full Size
Cooling Front: Space For 3 x 120mm or 2 x 140mm Fans
Cooling Top: Space For 2 x 120mm or 2 x 140mm Fans
Cooling Rear: Space For 1 x 120mm Fan (1 x 120mm ARGB Fan Included)
Cooling Side: None
Cooling Bottom: Space For 2 x 120mm Fans
IO Ports: 1 x USB 3.0
1 x USB 2.0
1 x HD Audio
1 x Microphone
GPU Max Length: 340mm
CPU Cooler Maximum Height: 165mm
Front Bezel Colour: White
Body Colour: White
System Cabinet Features:
PSU Included: No

General Specifications

Manufacturer Part Number: GMX-WHITEDIAMOND
EAN Number: 6931858773027
Has Mains Plug: No
Colour: White
What’s In The Box: Case
Manual
Screws
Unit (Product) Dimensions (mm): 210mm x 465mm x 416mm (W x H x D)
Packaging Dimensions (mm): 266mm x 468mm x 504mm (W x H x D)
Net Weight (KGs): 4.7 KGs
Gross Weight (KGs): 5.7 KGs
