Aero Mini ARGB PC Gaming Case
A range of LED lighting effects and modes are included to hand with the included V1.62 ARGB PWM hub or if you crave even more ARGB then through a compatible motherboard. A hinged tempered glass and white coloured interior on one or two areas of the chassis, both your components and lighting will be on display, not only improving the brightness of the ARGB but creating some stunning results.
Want a compact system, significant amount of airflow and of course ARGB lighting, then introducing the GameMax Aero Mini Mesh Micro-ATX ARGB PC gaming featuring a full front mesh panel with a trio of 120mm ARGB fans.
A range of LED lighting effects and modes are included to hand with the included V1.62 ARGB PWM hub or if you crave even more ARGB then through a compatible motherboard. A hinged tempered glass and white coloured interior on one or two areas of the chassis, both your components and lighting will be on display, not only improving the brightness of the ARGB but creating some stunning results.
Don’t let the compact size deceive you this little one handles full size components while still offering roomy installation space for one heroic looking build.
In line with the GameMax ethos this case offers style, performance and the ultimate experience.
The GameMax Aero Mini is compatible with the following fans:
GameMax Mirage Dual-Ring Rainbow RGB 120mm Fan
GameMax Mirage White Fins Dual-Ring Rainbow RGB 120mm Fan
GameMax Razor 120mm Rainbow ARGB Fan
GameMax Razor Extreme 120mm Rainbow ARGB Fan
GameMax Velocity 120mm Rainbow ARGB Fan
GameMax ARGB 3 In 1 Kit
Compatible with the Following Hubs
The GameMax Aero Mini is compatible with the following hub:
GameMax ARGB Fan Hub
Key Features
Integrated Mesh Front Panel – The Mini Aero is a M-ATX high airflow performance chassis thanks to the full U shape integrated mesh front panel with mesh holes 1mm in diameter, directing cold air inside, designed for excellent airflow.
Exterior and Interior – With a unique look the Aero Mini includes a combination of black exterior for easy maintenance and a white coloured PSU shroud and motherboard plate on the inside enhancing the ARGB illumination creating a stunning PC gaming case.
Motherboard Sync – You can now take your colour control to new levels with the included Aura Sync Cable, easily connect to the Aura Sync Switch on the PWM hub and simply connect the 3 Pin AURA to a 5V 3 Pin connection on a compatible motherboard and you can use the mobo software to sync your fans and strips the way you like and have even more access to more LED colour modes!

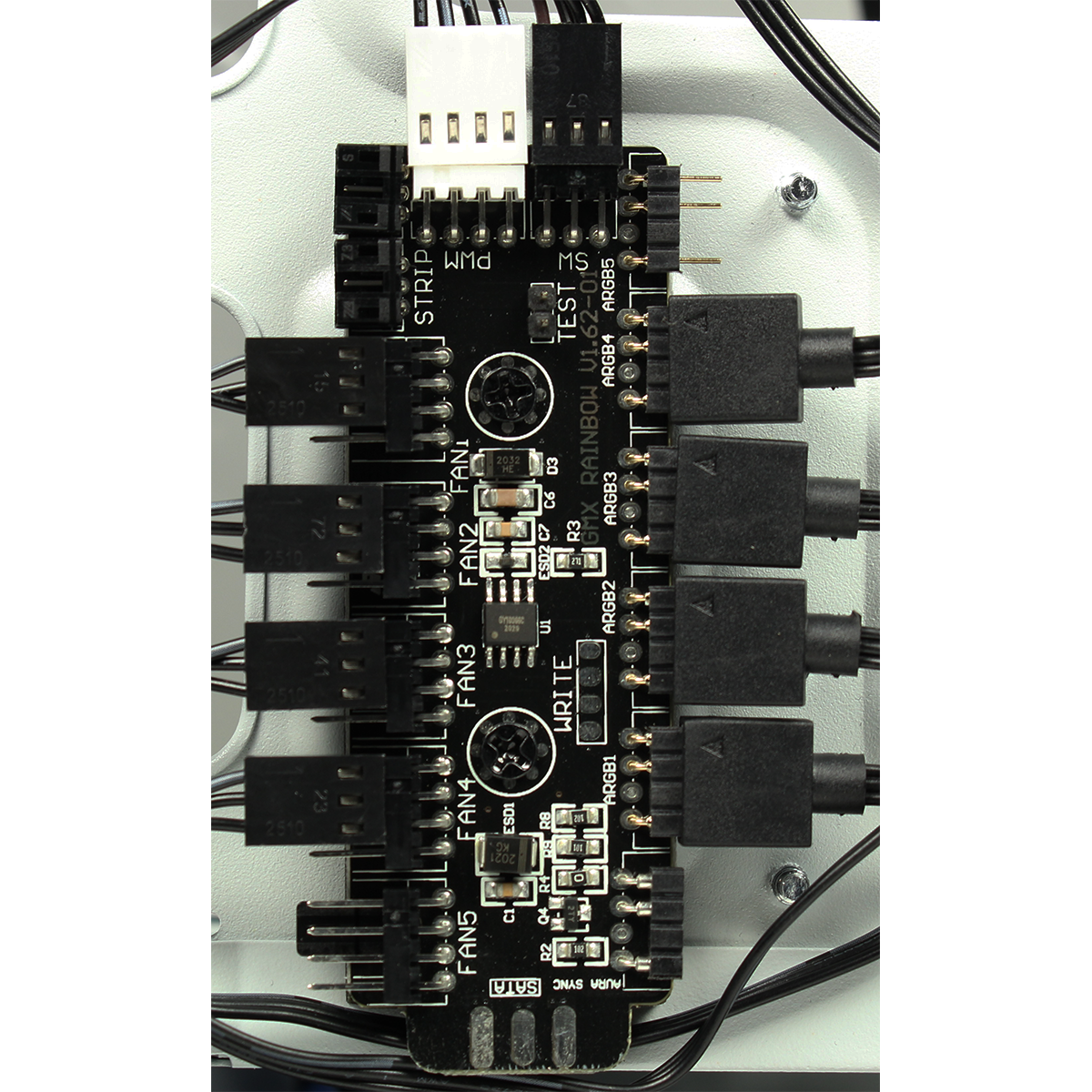

ARGB Hub Included – Included in the Aero Mini is the 1.62 ARGB PWM hub and is a controller that has it’s very own built – in lighting program. Connect up to five fans and two LED strips, have access to 18 colour modes manually or have even more using the motherboard software. Once all connected enjoy PWM auto speed controlled via MB’s PWM signal, also 2 RGB buttons (Mode & Brightness), it much better for user to easy adjust light mode and adjust between 5 different brightness modes (0-20-40-80-100%).
High Efficiency Heat Dissipation – Dual internal layout optimised for maximum airflow and support of six fans four 120mm pre-installed ARGB fans and water cooling support across the front and rear. (Please note the included ARGB PWM hub can only connect to 5 fans.)

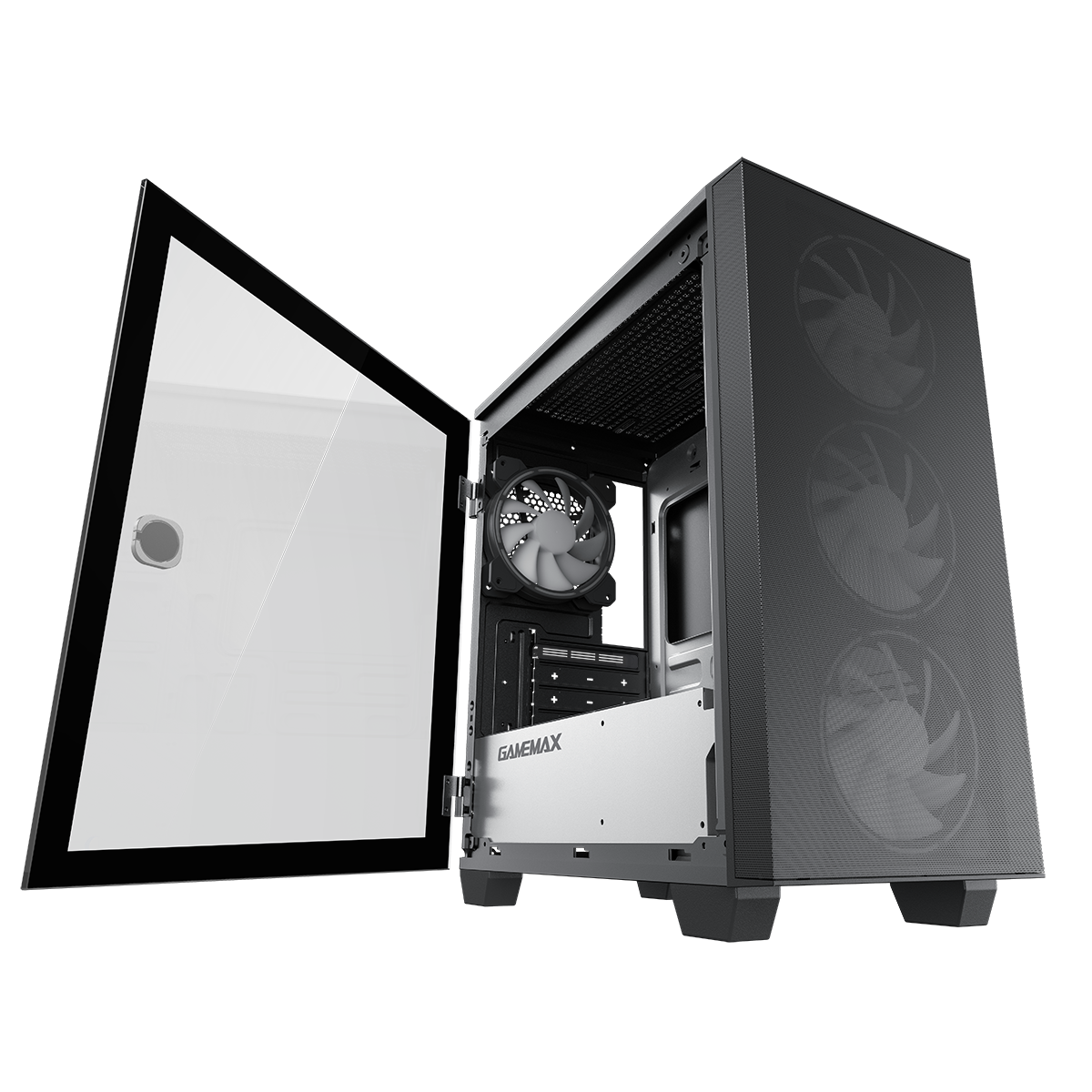

Tempered Glass – Featuring a 3mm tempered-glass side panel with black coloured edges and high transparency. Hinged design, no screws are required, has been included to make it even easier when building.
GPU Bracket – The chassis includes a bracket designed for support to the graphics card, prevents sag and the bracket allows for the installation of larger graphic cards.
| Chassis Dimensions (Excluding Fascia / Panels): | (W) 193 x (H) 390 x (D) 350mm |
| Fan Controller Included: | Yes |
| Fan Controller Power Via: | SATA Connector |
| LED Controller: | Yes |
| Fan Power Connector : | 3 Pin Fan Connector |
| LED Power Connector: | 3 Pin AURA |
| Fan Control Via: | 4 Pin PWM |
| Supported Qty of Fans (max.): | 5 |
| Supported Qty of Fans (max.): | 5 x 3 Pin AURA, 2 x LED Strips |
| Water Cooling Support: | |
| Rear Supported Radiators: | 120mm |
| PSU max. Length: | 155mm |
Case Specifications
| Form Factor: | Micro ATX |
| Motherboard Support: | Micro ATX, Mini ITX |
| PSU Support: | Standard ATX |
| PSU Location: | Bottom |
| Gaming Case: | Yes |
| Water Cooling: | Water Cooling Ready! Supported Radiator Size: 240mm Supported Radiator Positions: Front, Top |
| Body Material: | 0.6mm SPCC |
| Front Bezel Material: | Mesh & ABS |
| Side Panel: | 3mm Tempered Glass |
| Internal Cable Management Depth: | 20mm |
| External Bays: | |

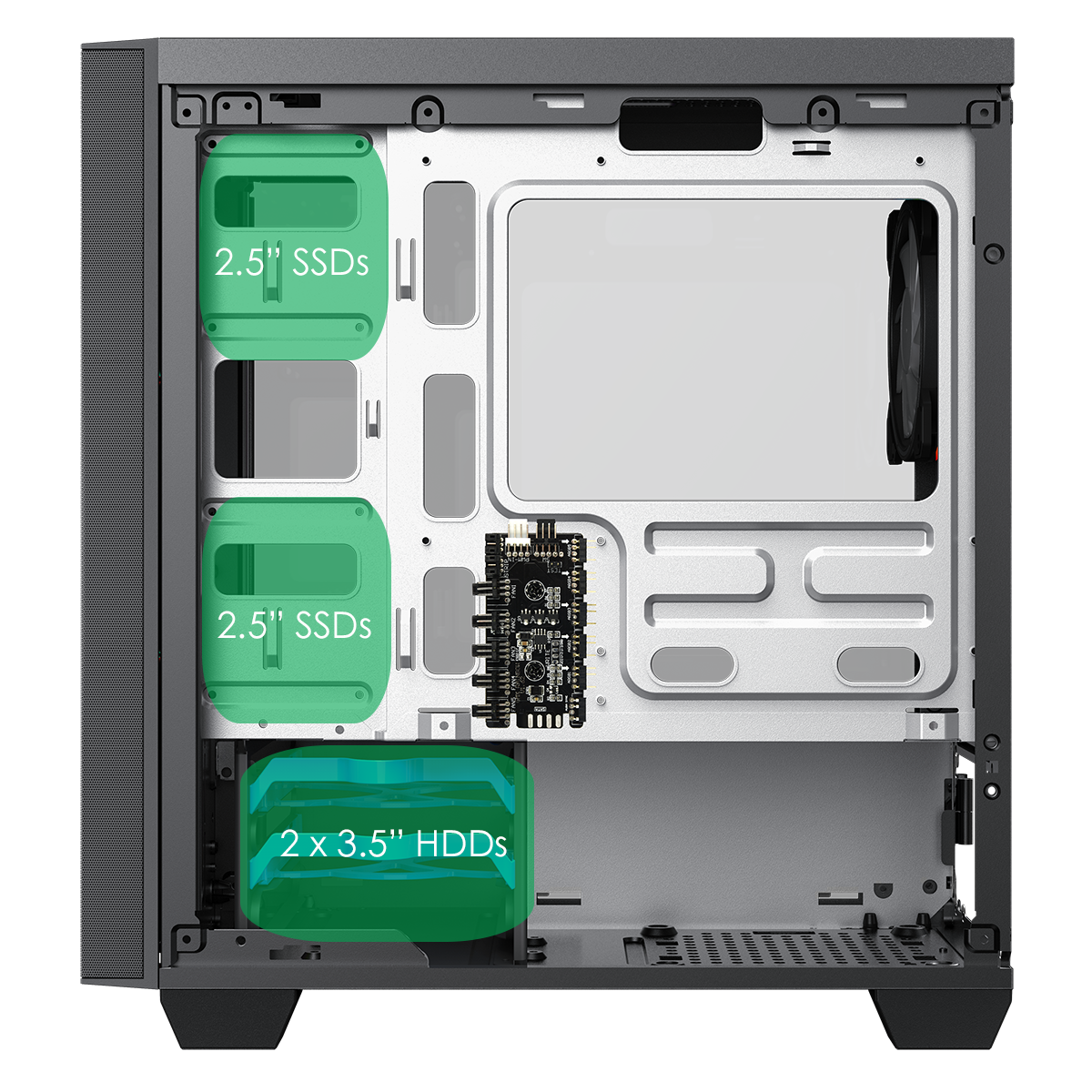

| Internal Bays: | 2 x 3.5” Internal 5 x 2.5” Internal |
| Drive Bay Notes: | 2 x 2.5″ & 2 x 3.5″ shared |
| Expansion Slots: | 4 x Full Size |
| Cooling Front: | Space For 3 x 120mm (3 x 120mm ARGB Fans included) |
| Cooling Top: | Space For 2 x 120mm Fans |
| Cooling Rear: | Space For 1 x 120mm Fan (1 x 120mm ARGB Fan Included) |
| Cooling Side: | None |
| Cooling Bottom: | None |
| Fan Controllers: | 1 Fan Controllers, controlling up to 5 fans in total |
| IO Ports: | 1 x USB 3.0 1 x USB 2.0 1 x HD Audio 1 x Microphone |
| GPU Max Length: | 340mm |
| CPU Cooler Maximum Height: | 160mm |
| Front Bezel Colour: | Black |
| Body Colour: | Black / White |
| System Cabinet Features: | |
| PSU Included: | No |
General Specifications
| Manufacturer Part Number: | AERO-MINI-WI |
| EAN Number: | 6931858771184 |
| Has Mains Plug: | No |
| Colour: | Black / White |
| What’s In The Box: | Case Accessories Pack Manual Aura Sync Cable PCI-E Bracket |
| Unit (Product) Dimensions (mm): | 193mm x 417mm x 383mm (W x H x D) |
| Packaging Dimensions (mm): | 276mm x 472mm x 469mm (W x H x D) |
| Net Weight (KGs): | 5.4 KGs |
| Gross Weight (KGs): | 6.3 KGs |
