DS360 ARGB PC Gaming Case
The GameMax DS360 ARGB gaming case is a dual chamber tempered glass ATX PC case with superb features and cleaver design making this case a real must have for gamers. Possessing excellent airflow thanks to GameMax including 6 x ARGB fans, delivering efficient cooling and the style of the fans used – Infinity – are unique they will leave you in awe, the DS360 will cool and illuminate the most demanding systems.
The 3 Pin Aura included takes the DS360 up another level and once successfully connected to a compatible motherboard (Please note your motherboard must have a 5V 3 Pin connection to sync successfully) enables even more dynamic ARGB lighting and you can synchronise across other components, creating a compelling system.
Two sides of the case are made using panoramic tempered glass showcasing your build from every angle and bringing an ATX sub-chassis structure with room for a huge ten fans, triple 360mm radiator locations and a PSU max. Length of 260mm, the potential of this case is massive and built for Esports, this is a case with a performance and the aesthetics of the highest standard.
In line with the GameMax ethos this case offers style, performance and the ultimate experience.

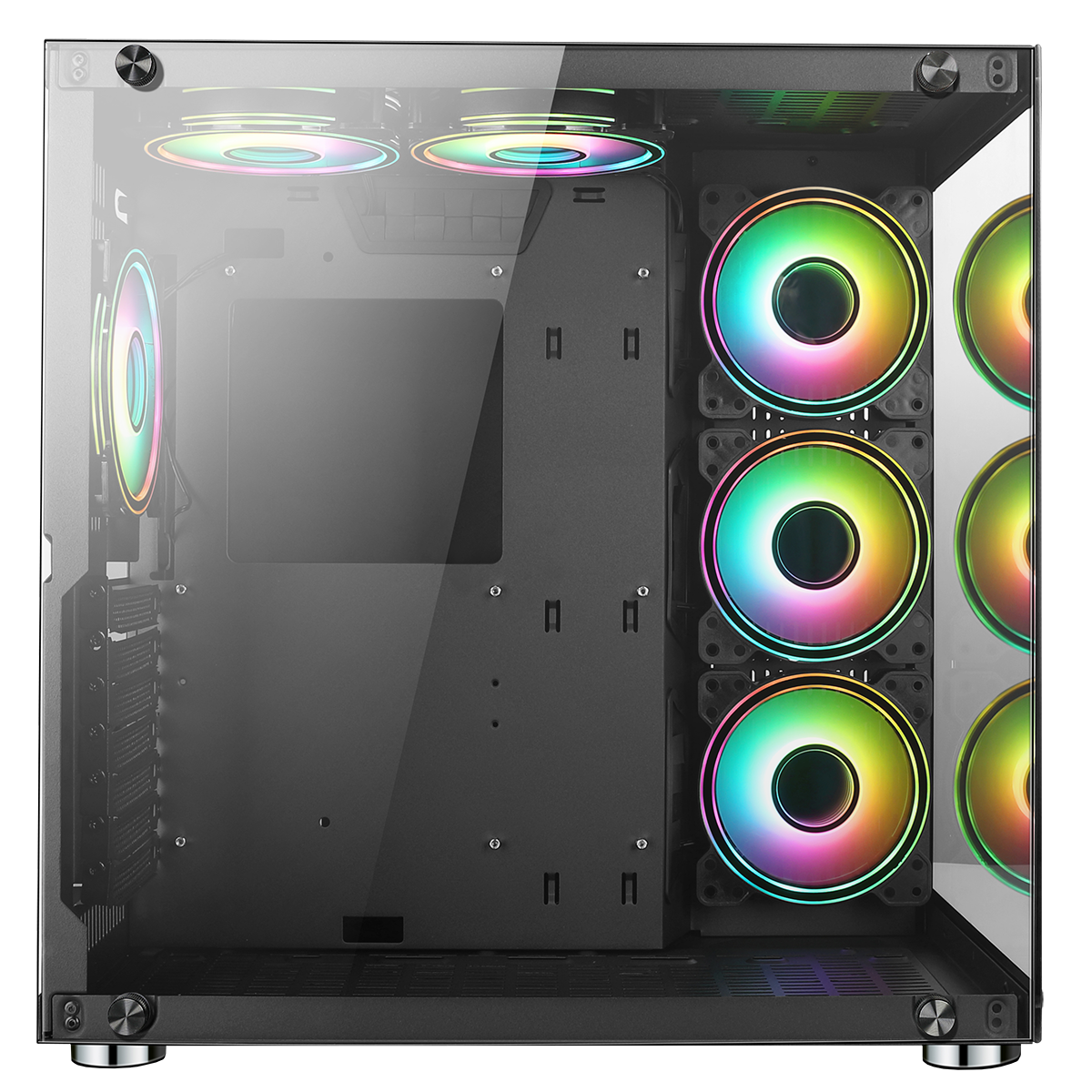

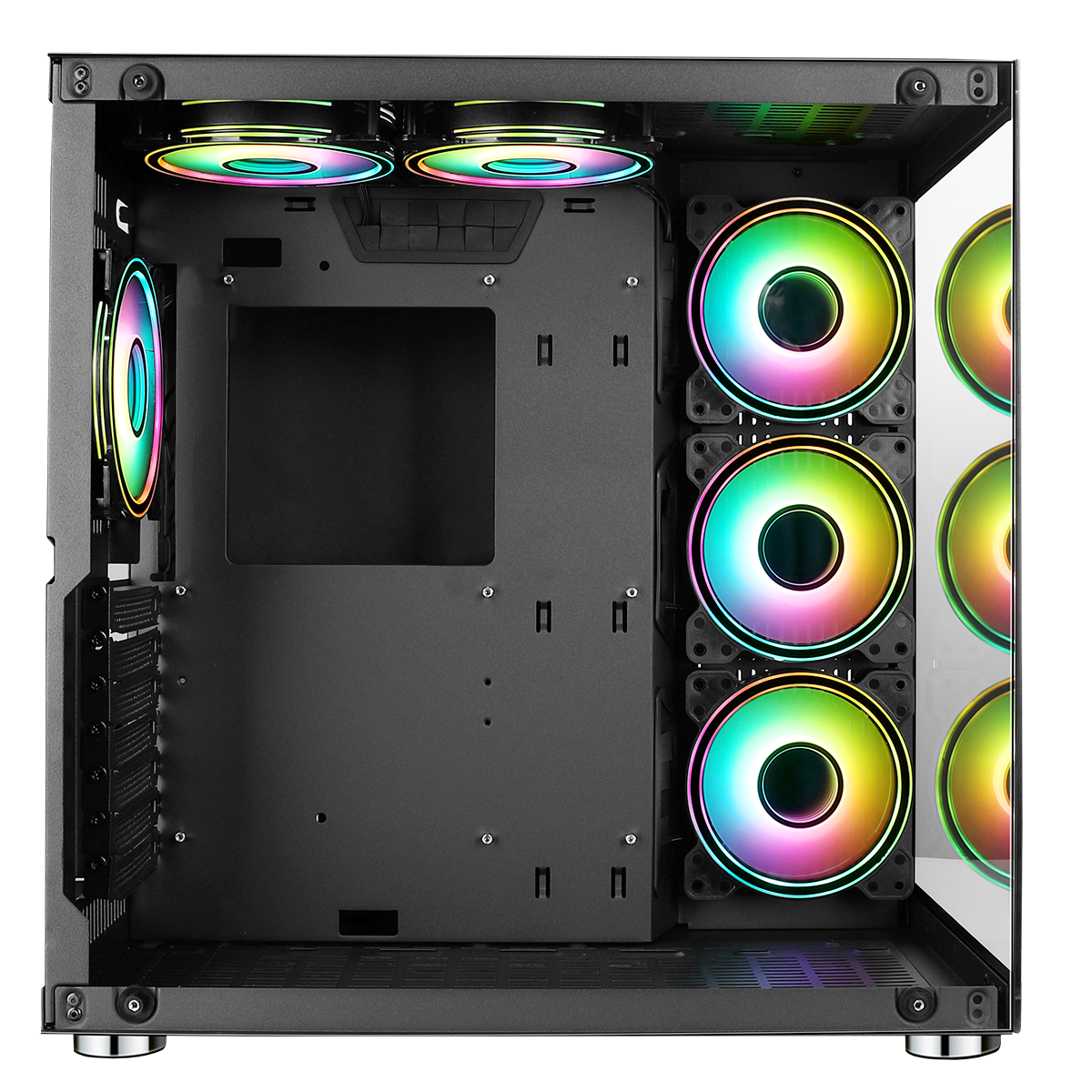

Dual Chamber Layout – The first case to be released by GameMax to be designed using a dual chamber layout provides plenty of space for your hardware, good airflow & ventilation, cable management and guarantees you can create a stylish looking build that will leave your friends jealous. The dual chamber design allows you to situate your power supply, hard drives and cables in the rear chamber freeing up the main chamber for your fan and radiator mounting points creating an unrestricted view of your components that matter.
High Airflow – Six included 120mm Infinity ARGB fans, 10x fan positions and triple 360mm radiator support takes your cooling to new heights and with fans positioned at the top, motherboard plate and rear the DS360 can easily deliver cool air to your important components to keep your system running at the highest level.
Motherboard Sync – Want even more ARGB lighting to take your system to the next level and boost your overall lighting, thanks to the included 3 Pin Aura motherboard connector you can control your DS360 using software. Please note that your motherboard must have a 5V RGB 3 Pin connection.

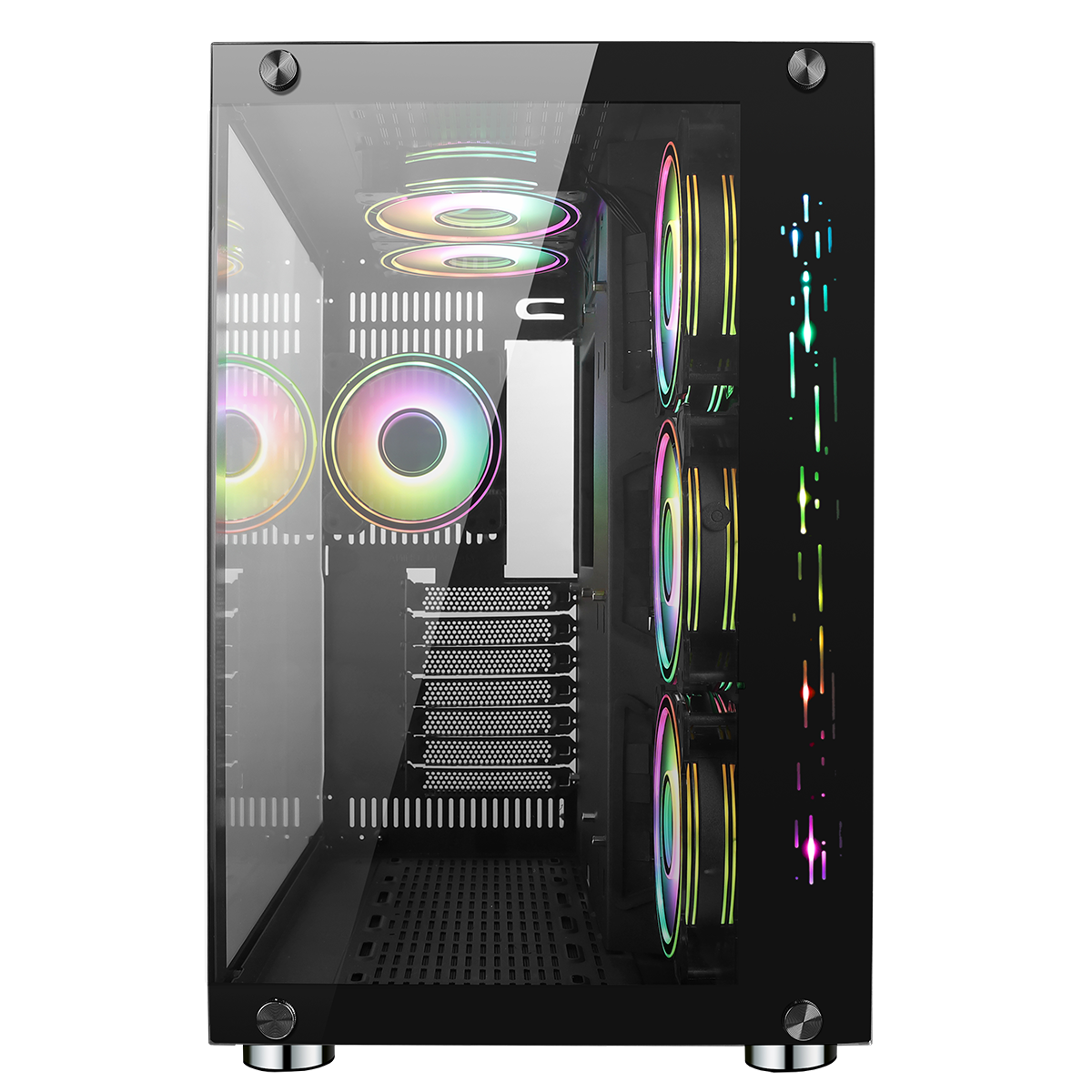

Tempered Glass Panels – Featuring Two four millimetre tempered glass panels fitted on the front and side of the DS360 provide you with an impressive view of your most important components that make your build.
Manual Control – No ARGB headers on your motherboard, the DS360 as well as including a motherboard connection, it includes a fan hub powered via SATA which can easily be connected to your power supply and can control your six ARGB fans using the LED button on the front I/O and have access to 14 colour modes.
|Chassis Dimensions (Excluding Fascia / Panels):||(W) 277 x (H) 415 x (D) 410mm|
|Fan Controller Included:||Yes|
|Fan Controller Power Via:||SATA Connector|
|Fan Power Connector :||None|
|LED Power Connector:||3 Pin Aura|
|Fan Control Via:||N/A|
|Supported Qty of Fans (max.):||0|
|Supported Qty of LED (max.):||6|
|Six Fans Included Additional Information:|
|Fans Powered Via:||4 Pin Molex|
|Fans LEDs Powered Via:||3 Pin Aura|
|Water Cooling Support:|
|Top, Motherboard Plate & Bottom:||120mm, 240mm or 360mm|
|PSU max. Length:||260mm|
|Packaging Type:||EPE Foam|
|Form Factor:||Midi Tower|
|Motherboard Support:||ATX, Micro ATX, Mini ITX|
|PSU Support:||Standard ATX|
|Water Cooling:||Water Cooling Ready!
Supported Radiator Size: 360mm
Supported Radiator Positions: Top
|Body Material:||0.8mm SPCC|
|Front Bezel Material:||4.0mm Tempered Glass|
|Side Panel:||4mm Tempered Glass|
|Internal Cable Management Depth:||100mm|

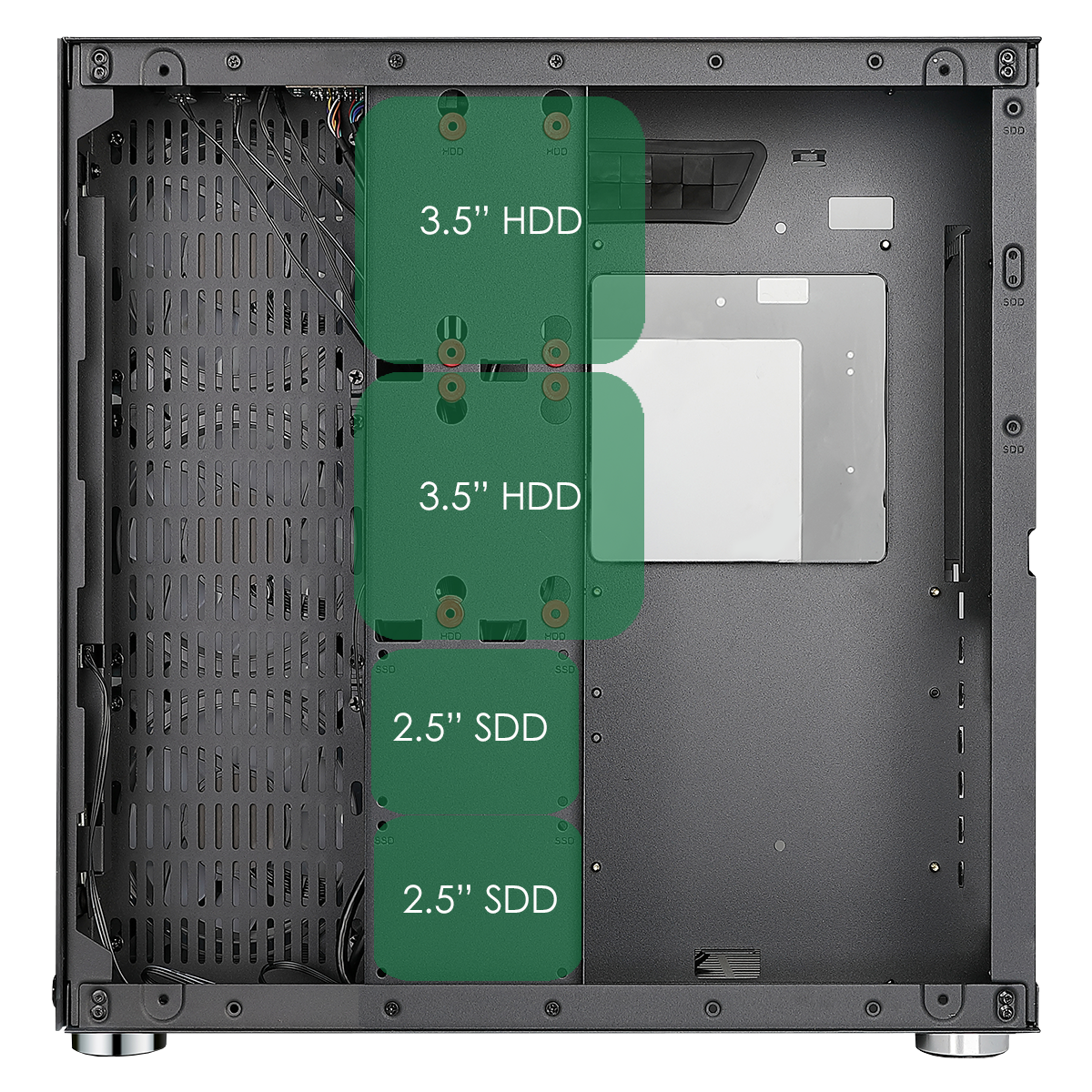

|Internal Bays:||2 x 3.5” Internal
2 x 2.5” Internal
|Drive Bay Notes:|
|Expansion Slots:||7 x Full Size|
|Cooling Top:||Space For 3 x 120mm Fans (2 x 120mm ARGB Fans Included)|
|Cooling Rear:||Space For 1 x 120mm Fan (1 x 120mm ARGB Fan Included)|
|Cooling Side:||Space For 3 x 120mm Fans (3 x 120mm ARGB Fans Included)|
|Cooling Bottom:||Space For 3 x 120mm Fans|
|Fan Controllers:||1 Fan Controllers, controlling up to
6 fans in total
|IO Ports:||1 x USB 3.0
2 x USB 2.0
1 x HD Audio
1 x Microphone
|GPU Max Length:||390mm|
|CPU Cooler Maximum Height:||160mm|
|Front Bezel Colour:||Black|
|System Cabinet Features:|
|Manufacturer Part Number:||GMX-DS360|
|Has Mains Plug:||No|
|What’s In The Box:||Case
|Unit (Product) Dimensions (mm):||277mm x 429mm x 415mm (W x H x D)|
|Packaging Dimensions (mm):||406mm x 535mm x 503mm (W x H x D)|
|Net Weight (KGs):||8.1 KGs|
|Gross Weight (KGs):||9.5 KGs|
